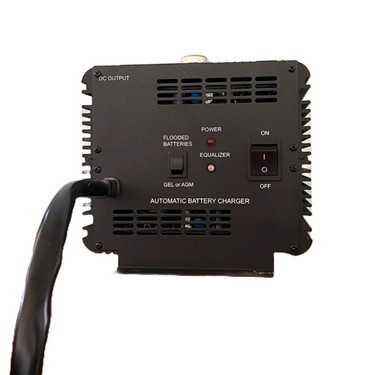

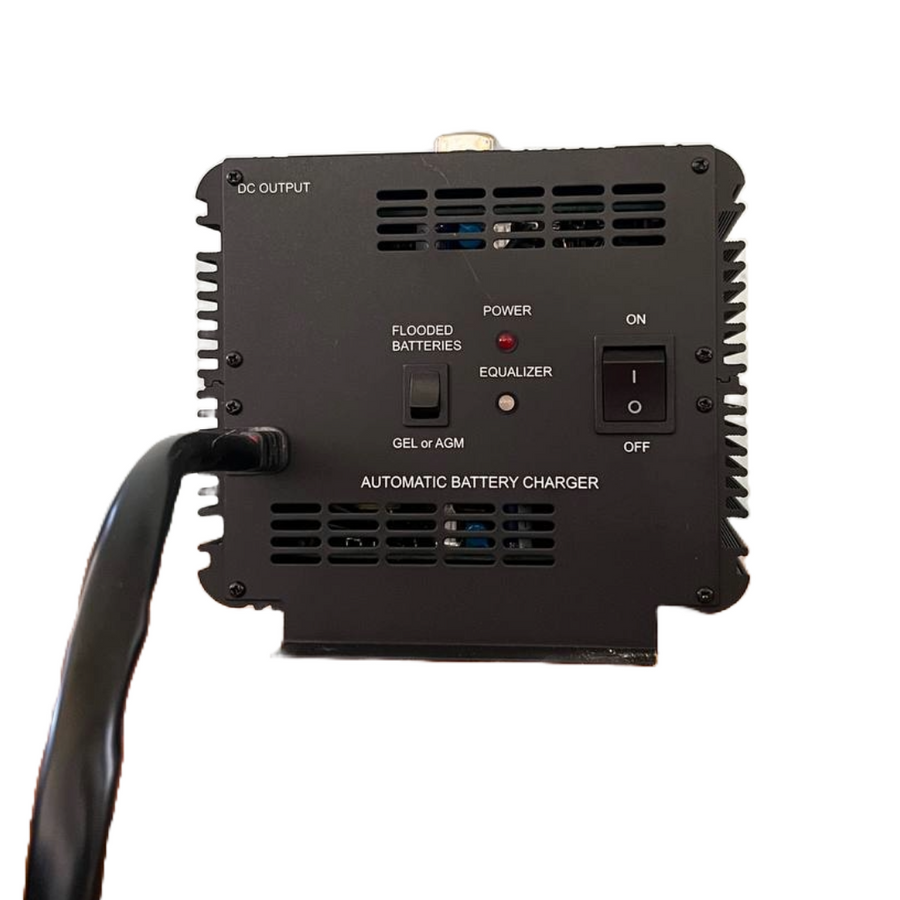

Schauer 36V Battery Charger Fast 20A For EVs And Golf Carts

The SCHAUER JAC2036H 20A 36V Battery Charger is a reliable, high-performance charging solution for 36V battery systems. Built for durability and ease of use, it’s ideal for electric vehicles, golf carts, and industrial equipment that rely on 36V power.

• Output specifications: Nominal 36 VDC with a maximum of 20 A output; target voltages vary by battery type (Flooded 44.6 VDC, AGM/Gel 43.2 VDC) and a float voltage of 39.7 VDC to maintain full charge.
• Three-stage charging profile: CC/CV/Float to optimize charging efficiency, extend battery life, and reduce wear during cycles.
• Battery compatibility: Suitable for Lead-Acid (Standard), AGM, and Gel batteries, providing versatile use across multiple 36V systems.
• Input flexibility: Auto-sensing input supporting 115/230 VAC, 50/60 Hz, with a single-phase connection via IEC C14; up to 14 A input current for efficient operation.
• Safety and protection: Includes overcharge protection, short-circuit protection, and thermal regulation to safeguard both charger and battery in demanding environments.
• Build and portability: Compact dimensions (243 x 186 x 163 mm) and a weight of 4.5 kg, designed for easy installation in fixed sites or mobile setups.
• Status indicators: Clear indicators for power, charging status, and fault conditions to simplify monitoring and maintenance.

Designed for reliability in real-world conditions, the JAC2036H delivers a consistent, safe charge for 36V battery systems. Its versatile voltage targets and compatibility with standard lead-acid formats mean you can use it across multiple platforms—from maintenance-free golf carts to range-dependent electric utility equipment—without needing multiple chargers. The compact, rugged design supports both stationary installations and on-the-go setups, while the float mode helps keep batteries at peak readiness without the risk of overcharging. Note that product availability can vary due to high demand or supplier delays, and updates will be provided as needed.
