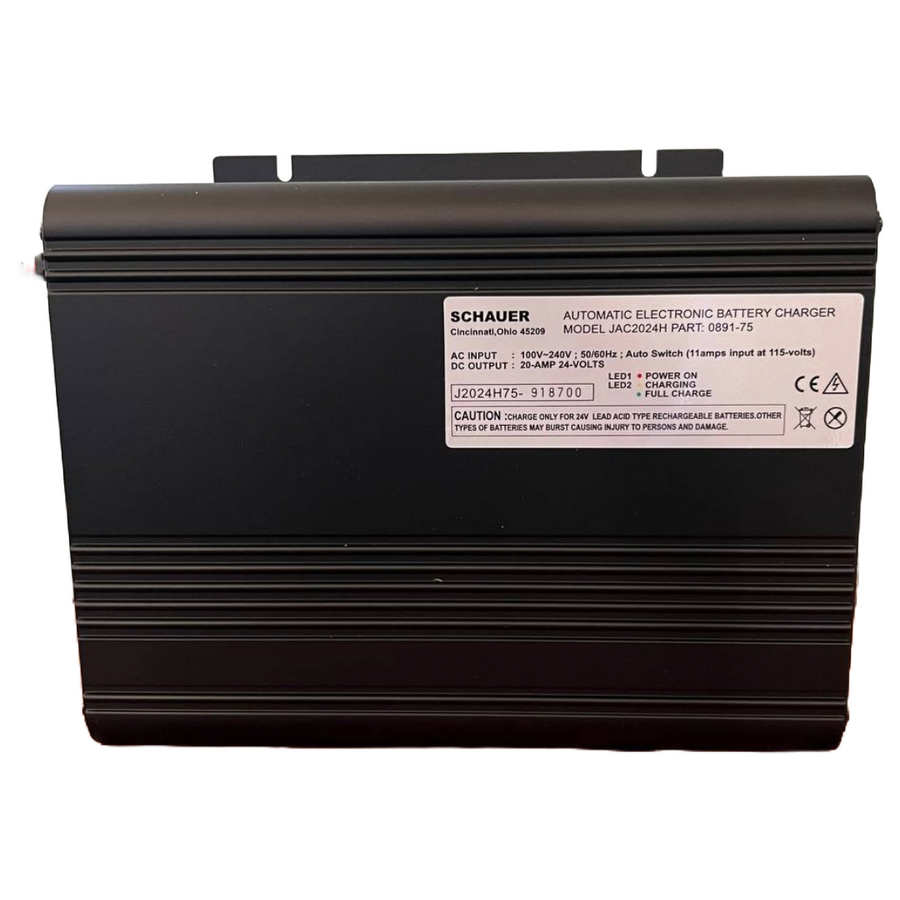

Schauer 24V Battery Charger JAC2024H 20A AutoSensing CC CV Float Mode Three Stage For Industrial Use

The SCHAUER JAC2024H 24V Battery Charger is a rugged, automatic switch-mode charger designed for commercial and industrial environments. It delivers reliable 24V charging for lead-acid, AGM, and gel batteries, helping fleets, workshops, and equipment maintain peak performance with minimal supervision.

• Model: JAC2024H
• DC Output: Nominal 24 VDC; Flooded batteries up to 29.7 VDC; AGM/Gel batteries up to 28.8 VDC; Float at 26.5 VDC
• Charging Profile: 3-stage CC/CV/Float with automatic multi-stage charging to optimize battery health and longevity
• Input Specifications: Auto-sensing 100–240 VAC, 50/60 Hz; max input current 11 A; single-phase; IEC C14 receptacle
• Max DC Current: 20 A to deliver fast, steady charging while protecting battery cells
• Battery Compatibility: Lead-acid (standard), AGM, and gel batteries for broad application compatibility
• Physical Dimensions & Weight: 410 mm (L) x 207 mm (W) x 85 mm (H); weight 3.3 kg for robust, space-efficient installation
• Safety Features: Short-circuit protection, reverse polarity protection, and over-temperature protection for safe operation
• Status Monitoring: Clear LED indicators provide immediate charging status and fault alerts
• Float Maintenance: Built-in float mode maintains full charge without overcharging or electrolyte loss
• Performance Thresholds: Load sensing and minimum operating voltage of 8 V ensure reliable startup and charging consistency

Designed to keep critical 24V battery banks ready, the JAC2024H delivers precise, efficient charging even in challenging environments. Its automatic switching, versatile battery support, and protective features help reduce battery sulfation, extend service life, and minimize downtime. With straightforward indicators and a compact form factor, it integrates easily into vehicle fleets, industrial equipment rooms, telecom backup systems, or any setup requiring dependable 24V power management.
